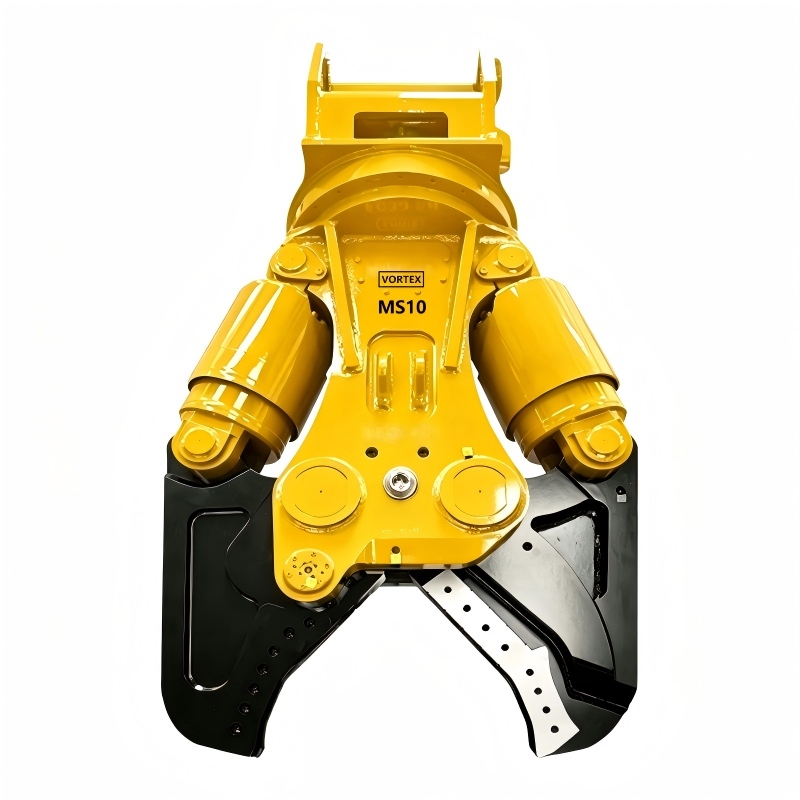

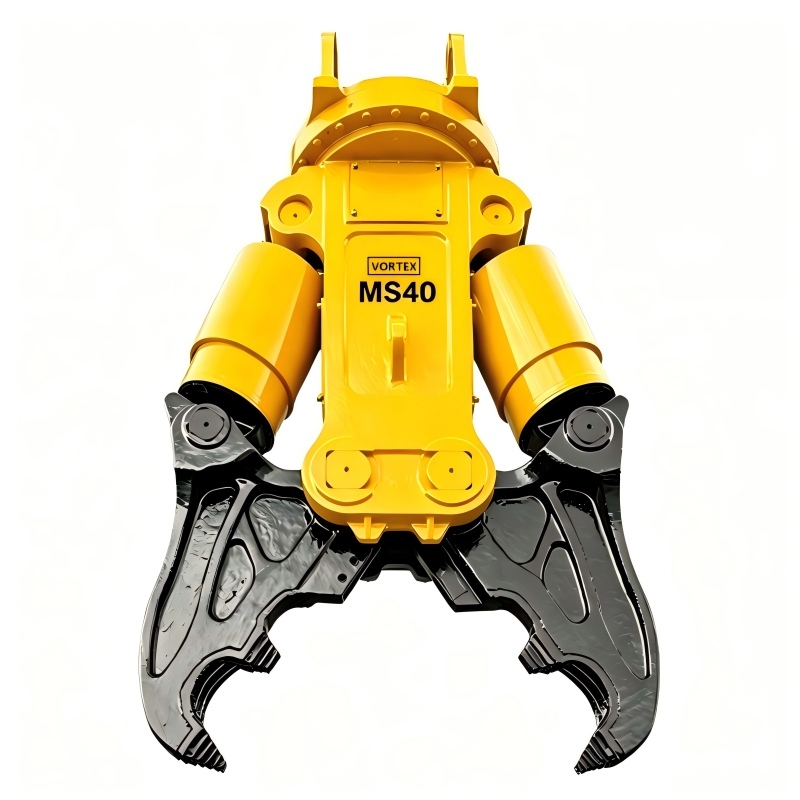

Demolition Shear

No.VORTEX-VTMS

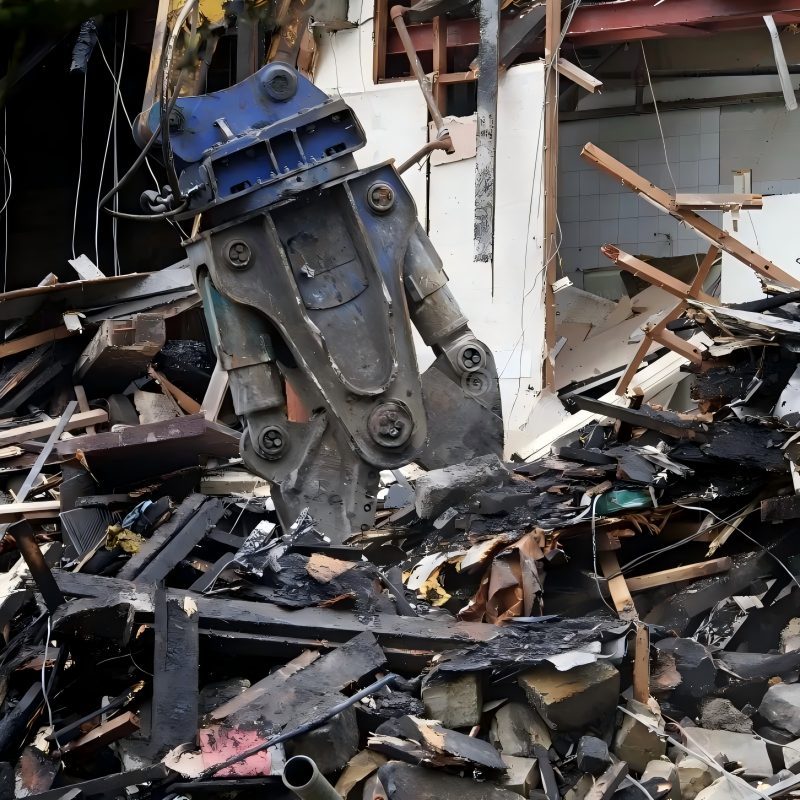

VORTEX Demolition Shear is engineered for the efficient shearing, separation and dismantling of concrete, steel bars in building and steel structure demolition.
Download
View all downloads
  • Demolition Shear,MY SHOP,PowerLink Quick-Connect System
  • Demolition Shear,MY SHOP,PowerLink Quick-Connect System
  • Demolition Shear,MY SHOP,PowerLink Quick-Connect System
  • Demolition Shear,MY SHOP,PowerLink Quick-Connect System
  • Demolition Shear,MY SHOP,PowerLink Quick-Connect System

Description

Product Features:

Adopt high-grade Swedish Hardox 500 steel, known for its excellent combination of lightness and superior wear resistance.
The pins are constructed from 42CrMo alloy steel, delivering exceptional strength and durability for reliable performance.
Equipped with Swiss-imported rotary motor, enabling full-angle rotation.
The cylinder is equipped with honed pipes and imported NOK seals, guaranteeing extended service life.
The cutting blocks are made of specialized wear-resistant alloy steel, designed to withstand high temperatures and resist deformation.

Technical Specifications

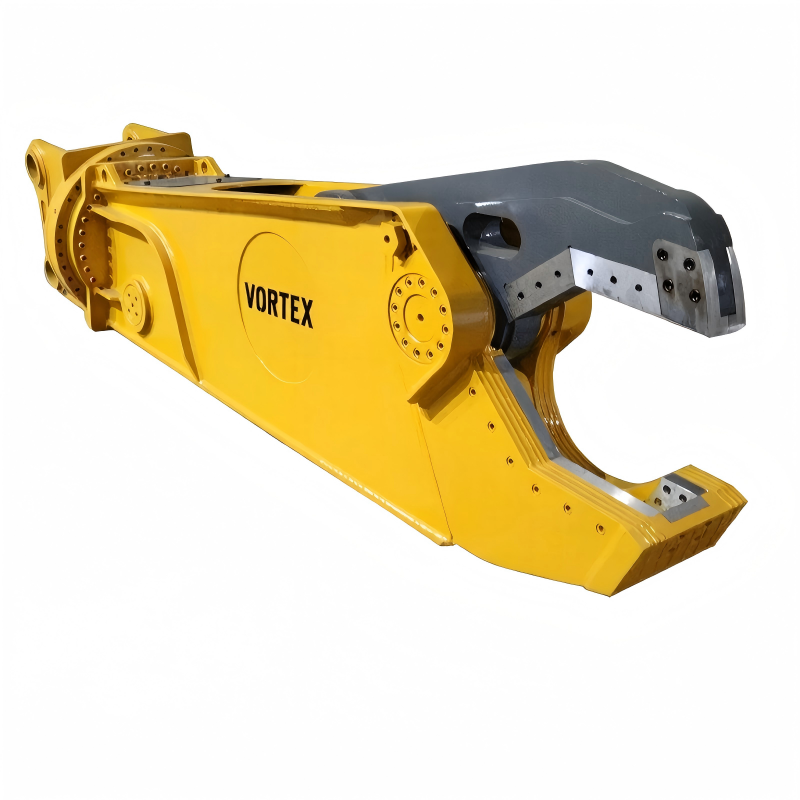

    Mini Hydraulic Shear High-Reach Demolition Shear
Item/Model Unit VTMS10 VTMS20 VTMS40 VTMS80V VTMS180V VTMS280V VTMS380V
Suitable Excavator ton 0.8-1.5 15-30 4-9 6-10 12-18 20-30 26-35
Weight Kg 135 210  400  360  1280  1600 2000
Opening mm 290 350  440  390  650  730 810
Blade Length mm 100 100  120  100  150  180 180
Height mm 1000 1055  1330  1280  1890  2010 2120
Width mm 660 690  770  850  1285  1350 1500
Crushing Force ton 20 22.5  50  20  80  100 120
Cutting Force ton 22 26  55  50  165  210 260
Driving Pressure bar 180 210 260 250 300 300 300
Driving Flow lpm 180 230 240 240
Cycle Time Open sec 2.1 2.9 2.9 2.9
Close sec 2.7 2.7 2.7 2.7
