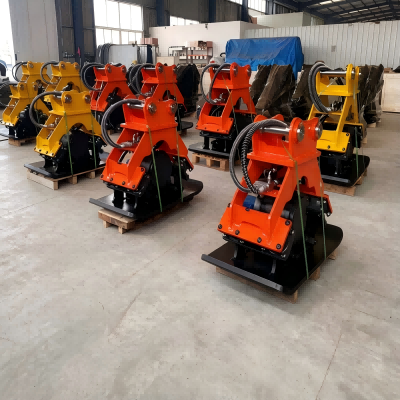

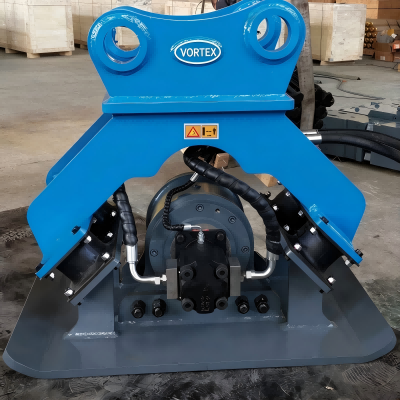

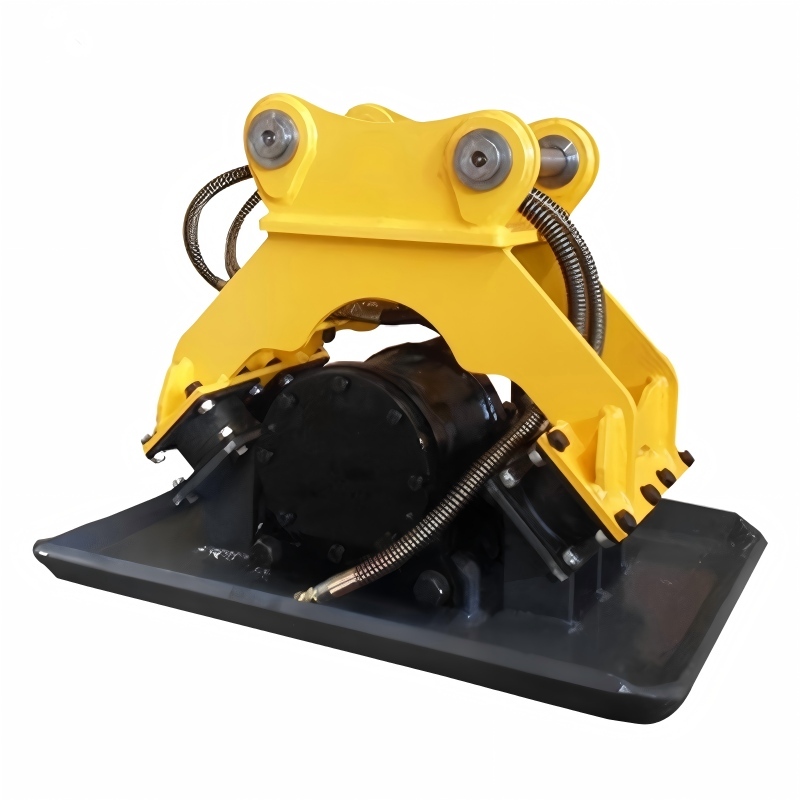

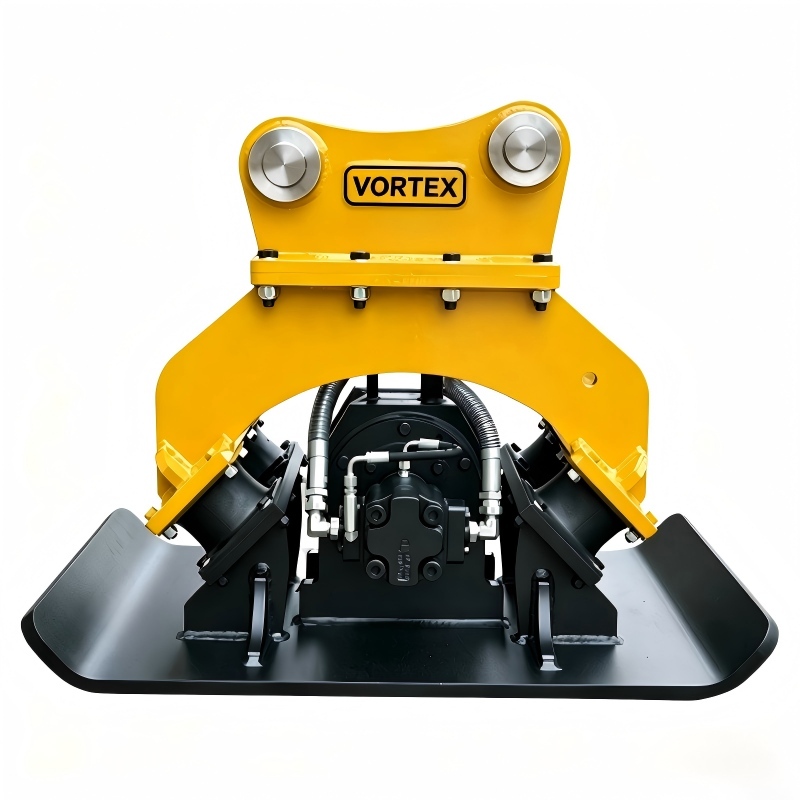

Vibratory Compactors

No.VORTEX-VTV

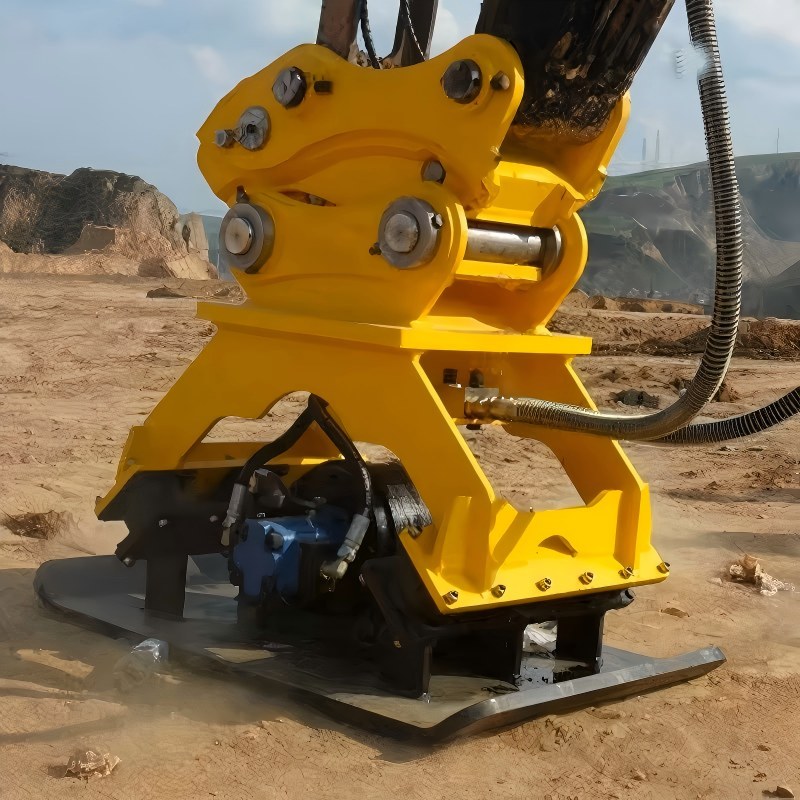

VORTEX Vibratory Compactors are engineered for challenging conditions, it provides reliable compaction in confined and complex terrains like trenches, slopes, and backfilled soil, meeting the rigorous demands of highway, municipal, and railway infrastructure projects.

GET A QUOTE

Download

View all downloads

Product Features：

The main structure is built with Q345 manganese steel plate, providing exceptional strength and corrosion resistance for long-term durability.

The pin shafts are precision-forged from 42CrMo alloy steel with built-in oil circuit, ensuring superior strength and wear resistance.

Powered by a high-performance hydraulic vibration motor imported from USA, delivering reliable and robust force for efficient operation.

Equipped with German FAG high-precision bearings, guaranteeing smooth, quiet, and reliable rotational performance.

The shock-absorbing blocks adopt Korean Autox, which can effectively reduce vibration and extend the machine life.

Technical Specifications

Item/Model	Unit	VTV02	VTV04	VTV06	VTV08	VTV10
Carrier	Ton	2~3	4~9	10~16	17~23	23~30
Impact Power	Ton	2	4	6.5	10	10
Maximum Vibration Frequency	R/Min	2000	2000	2000	2000	2000
Oil Flow	L/Min	25~40	45~75	85~105	120~170	120~170
Pressure	Kg/CM2	100~130	100~130	100~130	150~200	150~200
Weight	Kg	110	360	620	940	980
Bottom Measurement	L*W,Mm	650*470	740*550	820*700	1100*900	1100*900
Height	Mm	600	760	920	1060	1100
Width	Mm	410	550	700	900	900
