Log Grapple

No.VORTEX-VTSR

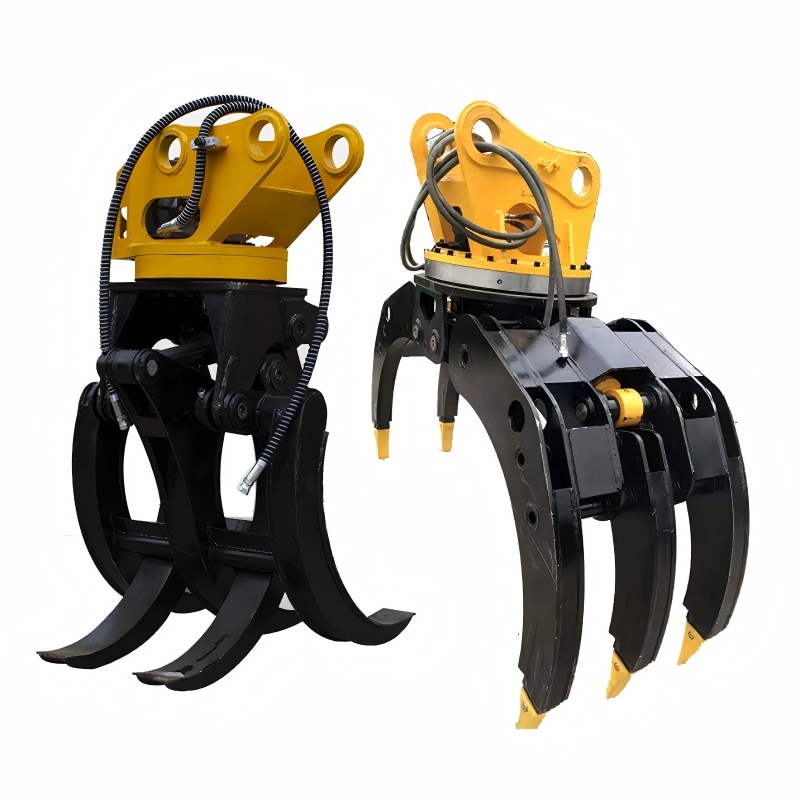

VORTEX Log Grapple: Single Cylinder Grapple and Rotating Log Grapple are available.
GET A QUOTE
Download
View all downloads
  • Log Grapple,MY SHOP,Log Grapple
  • Log Grapple,MY SHOP,Log Grapple
  • Log Grapple,MY SHOP,Log Grapple
  • Log Grapple,MY SHOP,Log Grapple
  • Log Grapple,MY SHOP,Log Grapple

Description

Single Cylinder Grapple

Application Scenarios:

Engineered for the loading and unloading of small wood such as weeds, straw and fine wood.

Product Features：

The main structure is built with Q345 manganese steel plate, providing exceptional strength and corrosion resistance for long-term durability.
The pin shafts are precision-forged from 42CrMo alloy steel with built-in oil circuit, ensuring superior strength and wear resistance.
Features with genuine Swiss-imported rotary motor.
A vertical winch motor drives seamless full-circle rotation, with an on-demand brake mechanism.
The cylinder is equipped with honed pipes and imported HALLITE seals, guaranteeing extended service life and leak-proof operation.
Item/Model Unit VTSR02A VTSR04A VTSR06A VTSR08A VTSR10A VTSR14A
Suitable Excavator ton 4-6 7-11 12-16 17-23 24-30 31-40
Weight Kg 360 440 900 1850 2130 2600
Max Jaw Opening mm 1200 1400 1600 2100 2500 2800
Working Pressure bar 110-140 120-160 150-170 160-180 160-180 180-200
Set Up Pressure bar 170 180 190 200 210 250
Working Flow lpm 30-55 500-100 90-110 100-140 130-170 200-250
Cylinder Volume ton 4.0*2 4.5*2 8.0*2 9.7*2 12*2 12*2

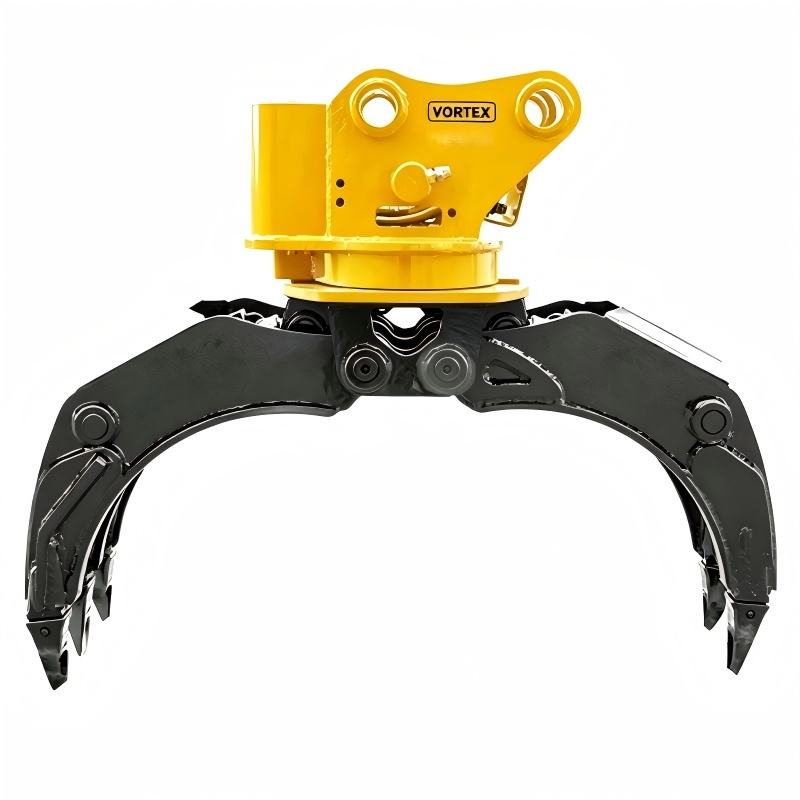

Rotating Log Grapple

Application Scenarios:

Engineered for the loading and unloading of small wood such as weeds, straw and fine wood.

Product Features：

The main structure is built with Q345 manganese steel plate, providing exceptional strength and corrosion resistance for long-term durability.
The pin shafts are precision-forged from 42CrMo alloy steel with built-in oil circuit, ensuring superior strength and wear resistance.
Features with genuine Swiss-imported rotary motor.
A vertical winch motor drives seamless full-circle rotation, with an on-demand brake mechanism.
The cylinder is equipped with honed pipes and imported HALLITE seals, guaranteeing extended service life and leak-proof operation.
The grabbing teeth are made of molybdenum-manganese alloy material, ensuring long-lasting durability.
Item/Model Unit VTSR02A VTSR04A VTSR06A VTSR08A VTSR10A VTSR14A
Suitable Excavator ton 4-6 7-11 12-16 17-23 24-30 31-40
Weight Kg 360 440 900 1850 2130 2600
Max Jaw Opening mm 1200 1400 1600 2100 2500 2800
Working Pressure bar 110-140 120-160 150-170 160-180 160-180 180-200
Set Up Pressure bar 170 180 190 200 210 250
Working Flow lpm 30-55 500-100 90-110 100-140 130-170 200-250
Cylinder Volume ton 4.0*2 4.5*2 8.0*2 9.7*2 12*2 12*2
