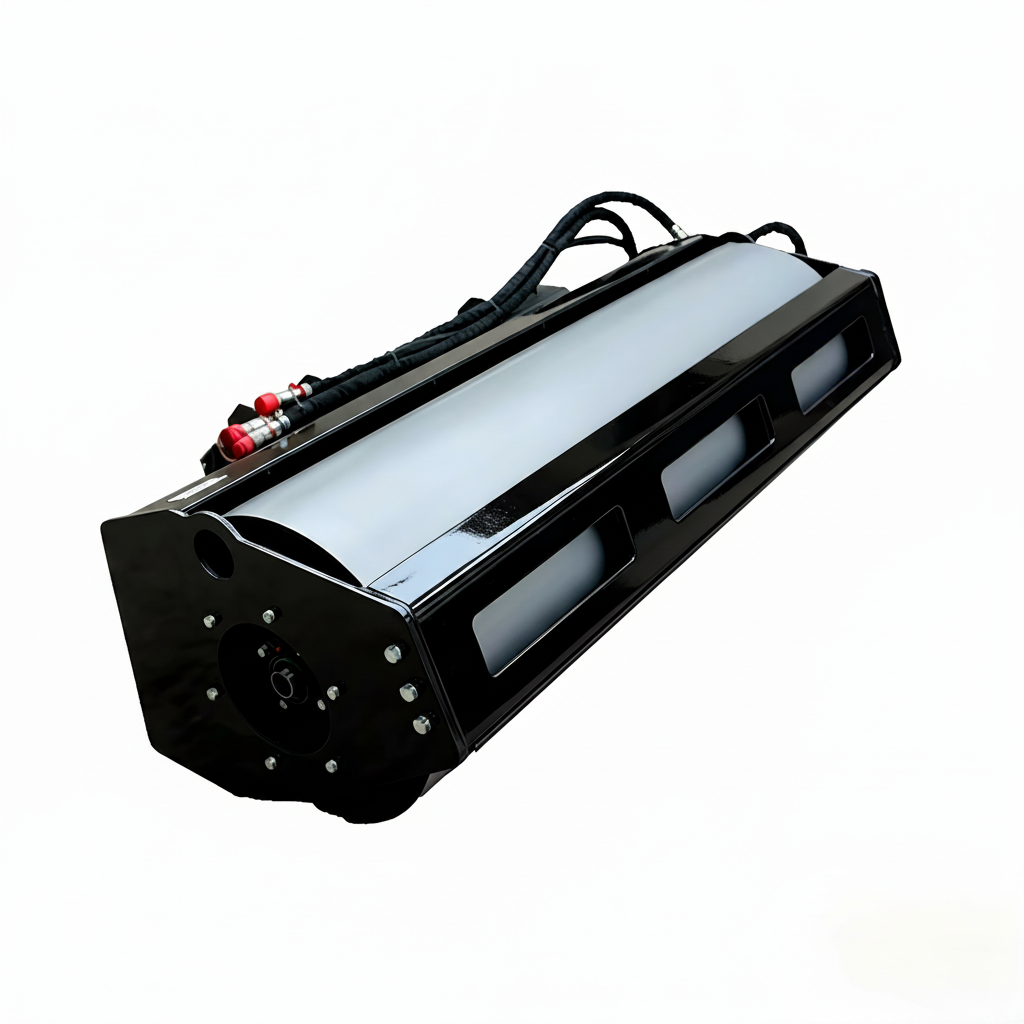

Vibratory Roller

No.VORTEX-VRRH

VORTEX Vibratory Roller is engineered for rapid and efficient compaction of earthworks such as highway subgrades, trench backfilling and building foundations.

GET A QUOTE

Download

View all downloads

Product Features：

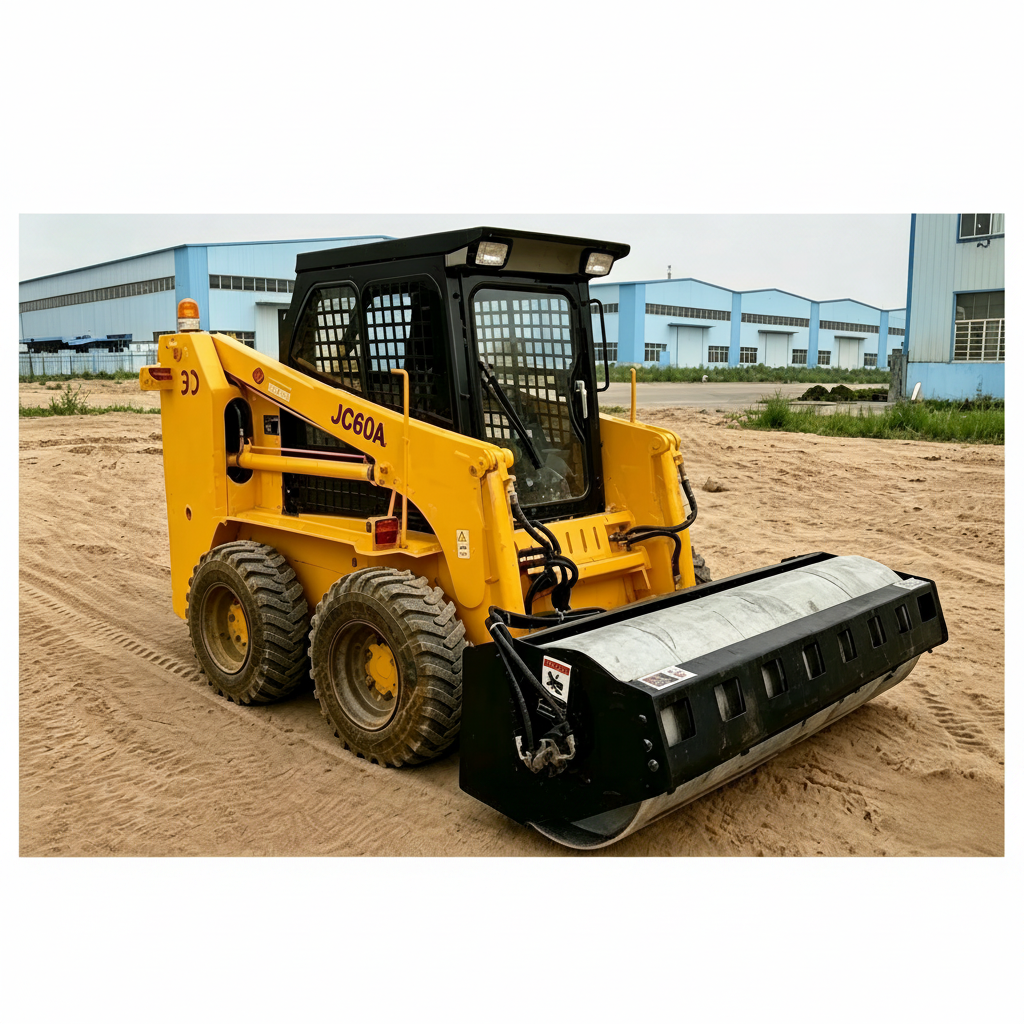

Compatible with Loaders and Skid-steer Loaders.

Integrated with a motor protection device in the hydraulic system to enhance durability.

Flexible and easy to operate, with a small footprint and low initial investment.

Adjustable vibration frequency to meet multiple compaction requirements across different working conditions.

Technical Specifications

Model	Unit	RH00636	RH00648	RH00660	RH00666	RH00672	RH00684
Overall Length	mm	864	864	864	990	990	990
Overall Width	mm	1067	1550	1720	1830	2007	2286
Overall Height	mm	565	565	565	788	788	788
Drum Width	mm	914	1220	1220	1220	1220	1220
Drum Diameter	mm	530	530	530	609	609	609
Centrifugal Force	Kn	20	26	31	35	39	43
Operating Speed	vpm	2600	2600	2600	2600	2600	2600
Oscillating Angle	degree	±15	±15	±15	±15	±15	±15
Operating Weight	kg	581	763	872	976	1104	1231
